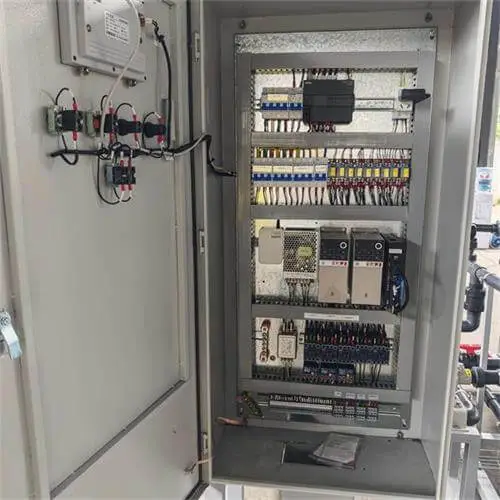

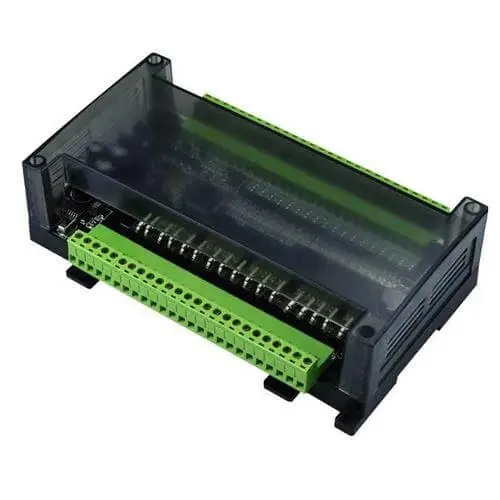

In the field of industrial automation control, PLCs (Programmable Logic Controllers) have become the core equipment of modern industrial control due to their high reliability, flexibility, and powerful control capabilities. However, in practical applications, PLC control systems are often affected by various types of interference, leading to unstable system operation, reduced control accuracy, and even equipment malfunctions. This article will conduct an in-depth analysis of common interference problems encountered in PLC control system applications and propose corresponding countermeasures, providing a reference for ensuring the stable operation of industrial automation systems.
Interference sources for PLC control systems are diverse and can be primarily categorized into the following types:
1. Power Supply Interference: This is one of the most common interference sources. Voltage fluctuations, surges, harmonics, etc., in the power grid can enter the PLC system through the power lines, affecting its normal operation. For example, the start/stop of high-power equipment and lightning induction can cause instantaneous voltage fluctuations in the grid, potentially leading to PLC program runaway or data loss.
2. Spatial Radiated Interference: Interference caused by electromagnetic field radiation, primarily from high-frequency equipment (such as frequency converters, radio transmitters) and arc discharge equipment (such as welding machines, contactors). The electromagnetic waves generated by these devices can couple onto the signal or power lines of the PLC system through spatial radiation, disrupting signal transmission.
3. Signal Line Interference: Caused by signal lines running parallel or in close proximity to other lines (such as power lines), leading to electromagnetic coupling or electrostatic induction, thereby introducing interference. For instance, if signal lines share the same cable tray with power lines without shielding measures, high-frequency harmonics from the power lines can couple onto the signal lines, causing signal distortion.
4. Grounding Interference: An improper grounding system can cause ground potential differences, forming ground loops and introducing interference. For example, if a PLC system shares a common grounding point with a frequency converter, the high-frequency noise generated during the converter's operation can couple into the PLC system via the ground wire, affecting its stability.
5. Other Interference: Includes factors such as ambient temperature, humidity, dust, and vibration. While these factors may not directly generate electromagnetic interference, they can affect the heat dissipation and insulation performance of PLC equipment, indirectly leading to system failures.
In response to the aforementioned interference sources, the following measures can be taken to enhance the anti-interference capability of PLC control systems:
1. Power Supply Anti-Interference Measures
(1) Use an Isolation Transformer: An isolation transformer can effectively isolate high-frequency noise and surge voltages from the power grid, providing clean power to the PLC system.
(2) Install Power Line Filters: Power line filters can filter out high-frequency interference signals from the power lines, preventing them from entering the PLC system.

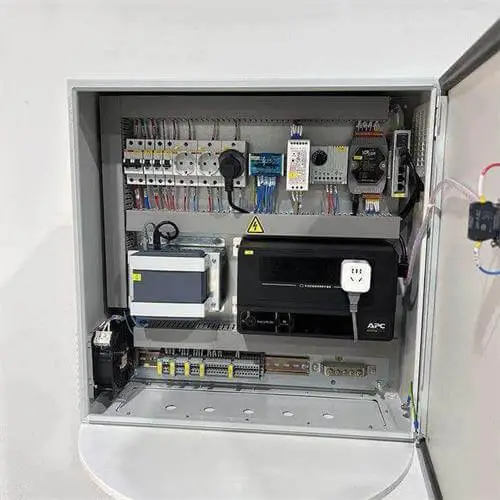

(3) Use UPS (Uninterruptible Power Supply): A UPS can provide backup power during grid power outages, ensuring continuous power supply to the PLC system, while also filtering out grid interference.
(4) Optimize Power Wiring: Power lines for the PLC system should be kept as far away as possible from power lines and high-frequency equipment. Avoid parallel routing. Use shielded cables if necessary.
2. Signal Line Anti-Interference Measures
(1) Use Shielded Cables: Shielded cables can effectively suppress electromagnetic interference and electrostatic induction, improving signal transmission quality. The shield should be grounded at one end only to avoid creating a ground loop.
(2) Twisted-Pair Transmission: Twisted-pair cables can cancel out some electromagnetic interference and are suitable for low-frequency signal transmission.
(3) Separate Signal and Power Lines: Signal lines and power lines should be routed separately, maintaining a sufficient distance and avoiding parallel runs. If parallel routing is unavoidable, the spacing should be greater than 50 cm. Use metal conduits or cable trays for isolation when necessary.
(4) Use Optical Isolators: Employing optical isolators at signal input/output terminals can break ground loops and prevent the conduction of interference signals.
3. Grounding Anti-Interference Measures
(1) Single-Point Grounding Principle: The PLC system should employ single-point grounding to avoid forming ground loops. All ground wires should converge to the same grounding point, and the grounding resistance should be less than 4 Ω.
(2) Separate Grounding for Weak and Strong Current Systems: Weak current systems (e.g., PLC, instruments) and strong current systems (e.g., motors, frequency converters) should have separate grounding to prevent interference from the strong current system coupling into the weak current system via the ground.
(3) Ground Wires Should be Short and Thick: Ground wires should be as short as possible with a sufficiently large cross-sectional area to reduce grounding impedance.
4. Software Anti-Interference Measures
(1) Digital Filtering: Implementing digital filtering algorithms in the PLC program can filter out noise interference in input signals, improving signal stability.
(2) Watchdog Timer: Using a watchdog timer can monitor the running state of the PLC program. If the program runs away, it can automatically reset the PLC and restore normal system operation.
(3) Redundancy Design: For critical control loops, redundancy design (e.g., hot standby, voting mechanisms) can be employed to enhance system reliability.
5. Other Anti-Interference Measures
(1) Select Installation Location Appropriately: The PLC should be installed away from strong interference sources (e.g., frequency converters, high-power motors). Ambient temperature, humidity, dust levels, etc., should meet the PLC's operating requirements.
(2) Regular Maintenance and Inspection: Regularly inspect the PLC system's power supply, grounding, signal lines, etc., to promptly identify and eliminate potential interference hazards.
A PLC control system in a chemical plant frequently experienced false trips, leading to production line stoppages. Investigation revealed that the PLC and frequency converter shared a common grounding point, and signal lines ran parallel to power lines without shielding measures. High-frequency noise generated during the frequency converter's operation coupled into the PLC system via the ground and signal lines, interfering with its normal operation. The solution involved providing separate grounding for the PLC and the frequency converter, replacing signal lines with shielded cables, and rerouting them to maintain sufficient distance from power lines. After implementing these changes, the PLC system operated stably with no further false trips.
Anti-interference measures for PLC control systems constitute a systematic engineering effort that requires comprehensive consideration of both hardware and software aspects. Through rational design, installation, and maintenance, interference can be effectively suppressed, thereby enhancing the stability and reliability of PLC control systems and ensuring the safe and stable operation of industrial automation systems. In practical applications, suitable anti-interference measures should be selected based on specific interference sources and environmental conditions and applied comprehensively to achieve optimal anti-interference results.
