The oil-free oxygen compressor, a critical component in medical, aquaculture, and industrial applications, demands exceptional purity, reliability, and quiet operation. Traditional drive systems often fall short of these requirements. This article explores the system-level integration of High-Torque Low-Speed Permanent Magnet Synchronous Motors (PMSMs) as an ideal solution. By focusing on the synergistic optimization between the motor, compressor host, and drive, significant advancements in efficiency, noise reduction, and compactness are achieved, marking a performance leap for the entire compressor system.

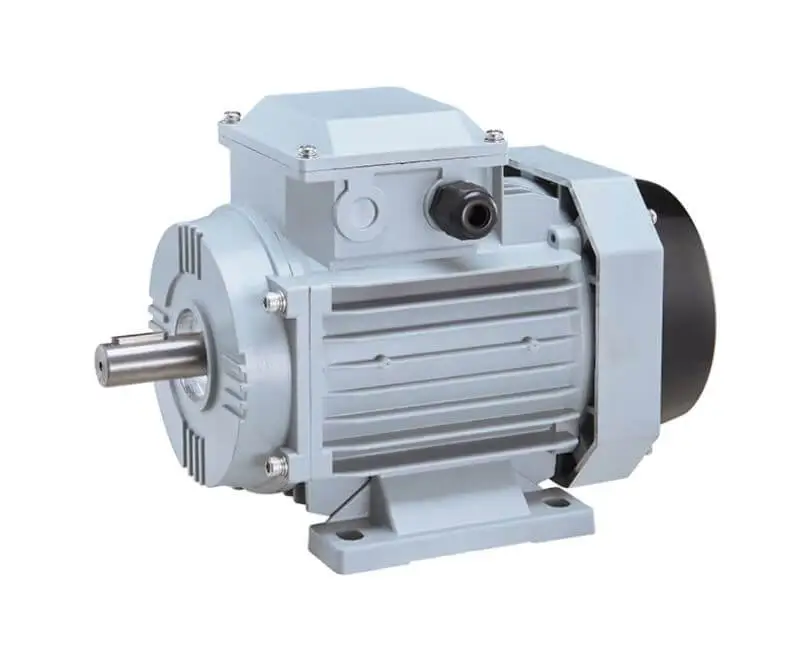

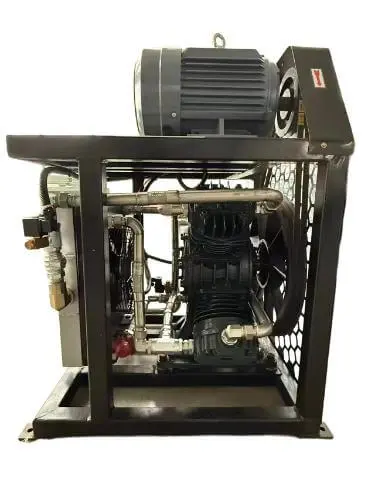

Oil-free oxygen compressors are indispensable in scenarios where air purity is paramount. In medical fields (e.g., ventilators, oxygen concentrators), they ensure patient safety by delivering uncontaminated breathing air. In aquaculture (pond oxygenation) and industrial processes (chemical, metallurgical), they guarantee process integrity and product quality. These applications impose stringent requirements: absolute oil-free operation, high reliability, and low noise levels.
Traditional power solutions face inherent limitations. The asynchronous motor + gearbox configuration suffers from low efficiency, high noise due to gear meshing, structural complexity, and the ever-present risk of oil contamination from the gearbox. While a standard RPM PMSM + belt drive system offers improvements in vibration and noise over geared solutions, it still introduces potential slippage, maintenance needs from the belt, and compromises the system's compactness and overall efficiency.
The high-torque low-speed PMSM emerges as a transformative technology, addressing the core challenges through system-level integration.
2.1. Direct-Drive Revolution
By eliminating the gearbox or belt drive, the PMSM directly couples to the compressor crankshaft or screw. This fundamental change eradicates transmission losses, gear-induced noise, and associated maintenance. Crucially, it completely eliminates the risk of lubricant contamination of the oxygen stream, ensuring absolute purity.
2.2. The Efficiency King
PMSMs leverage high-grade Neodymium Iron Boron (NdFeB) permanent magnets, providing superior power density and efficiency. Compared to asynchronous motors, PMSMs can achieve 5%-10% higher efficiency for the same output power, leading to substantial energy savings and reduced operating costs over the compressor's lifespan.
2.3. Perfect Match: Low Speed & High Torque
The motor's inherent low-speed, high-torque characteristic is perfectly matched to the load profile of a compressor. This ensures exceptionally smooth start-up and stable operation with minimal vibration, which is particularly critical for applications sensitive to pressure pulsations. The direct drive enhances this stability.
2.4. Superior Control Performance
When paired with a high-performance vector control drive, the PMSM enables precise speed regulation across a wide range. This facilitates accurate control of flow and pressure, enhancing process control capabilities and overall system performance.
Realizing the full potential of the PMSM within the compressor system requires targeted technological refinements.
3.1. Electromagnetic Design Optimization

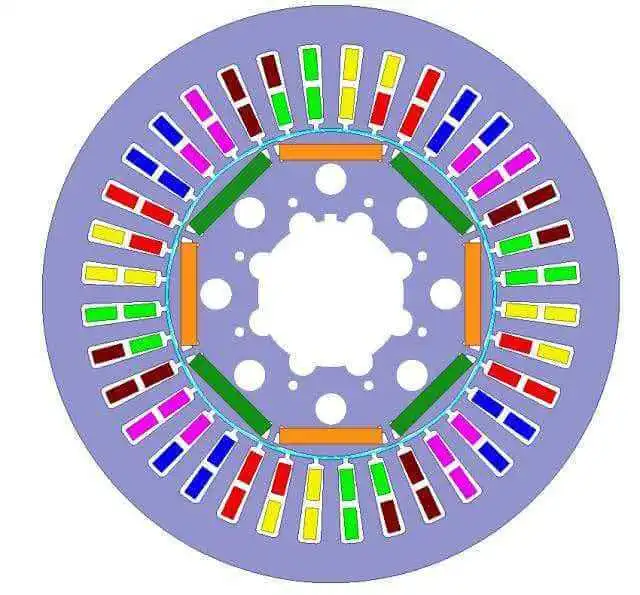

Pole-Slot Combination Optimization: A multi-pole, multi-slot design is fundamental for achieving low speed and high torque. This design is meticulously optimized to minimize cogging torque, ensuring buttery-smooth start-up and low-speed operation, which directly translates to lower vibration and noise.

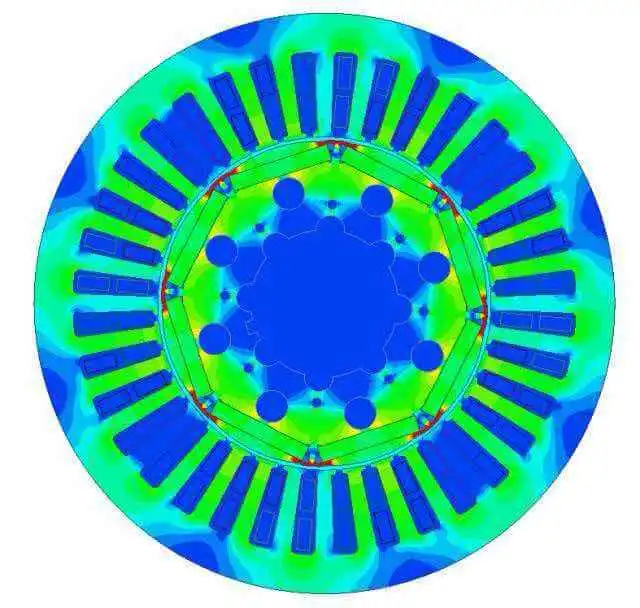

Magnetic Circuit Innovation: Advanced magnetic circuit topologies, such as the "single-layer" or "V-type" arrangements, are employed to enhance flux concentration, optimize the back-EMF waveform (making it more sinusoidal), and consequently reduce torque ripple for quieter, smoother performance.
3.2. Rotor Structure and Thermal Management

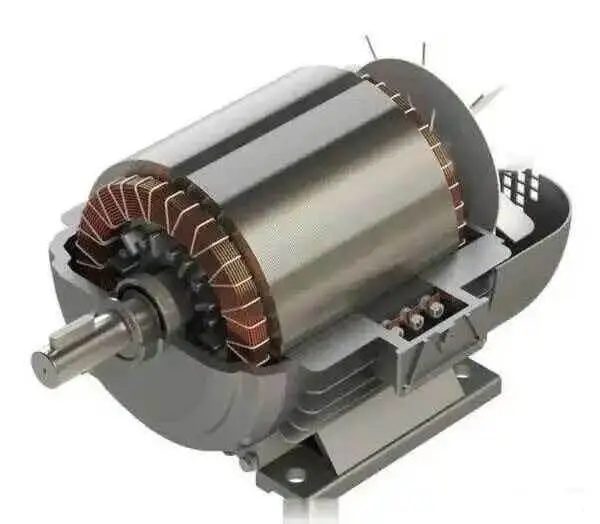

High-Strength Rotor Design: Even at low output speeds, the internal electromagnetic forces and potential for high rotational speeds necessitate a robust rotor. Techniques like a retaining sleeve or carbon fiber banding are used to ensure mechanical integrity under all operational conditions.
Efficient Cooling Schemes: Effective heat dissipation is vital for sustained performance and longevity. Jacket water-cooling is common, while advanced oil-cooling systems (with the cooling oil completely isolated from the compression chamber) can be implemented for higher power densities, effectively managing motor temperatures.
3.3. Materials Science and Advanced Manufacturing
High-Performance Permanent Magnets: The use of NdFeB magnets with high coercivity and excellent thermal resistance is critical to withstand demagnetization risks and ensure long-term magnetic stability and reliability.
Low-Loss Silicon Steel Laminations: The core stack is made from thinner, high-grade silicon steel with significantly reduced iron losses. This minimizes core losses, especially at lower speeds, contributing directly to the motor's high-efficiency profile.
The ultimate performance leap is achieved by treating the motor, drive, and compressor as a single, optimized system.
4.1. Motor-Compressor Integrated Design
Moving beyond mere coupling, the motor rotor can be directly integrated with the compressor's crankshaft or screw. This integrated design reduces the overall footprint, increases structural rigidity, minimizes alignment issues, and further reduces potential sources of vibration.
4.2. Application of Intelligent Algorithms
The system's drive unit incorporates advanced control algorithms such as MTPA (Maximum Torque Per Ampere) control for optimal torque generation at lower speeds, and flux-weakening control to extend the speed range. This ensures efficiency is optimized across the entire operating envelope. Furthermore, integration with IoT platforms enables real-time monitoring and predictive maintenance, forecasting potential issues before they cause downtime, thereby enhancing system reliability and availability.
The integration of a high-torque, low-speed PMSM into an oil-free oxygen compressor represents a significant technological leap. By focusing on system-level optimization—from the electromagnetic design of the motor to its mechanical integration with the host and its control by an advanced drive—a synergistic performance enhancement is unlocked. The result is a compressor system that sets new benchmarks: achieving unparalleled levels of energy efficiency, remarkably quiet and stable operation, a more compact and robust footprint, and guaranteeing absolute oil-free air output. This holistic approach perfectly meets the stringent demands of modern medical and industrial applications, paving the way for the next generation of high-performance compression systems.
