As an indispensable key component in modern industrial control systems, the load detection capability of Variable Frequency Drives (VFDs) is directly related to the operational efficiency of the entire system and the lifespan of the equipment. This article provides a comprehensive analysis of the technical principles, implementation methods, and solutions to common problems associated with VFD load detection.

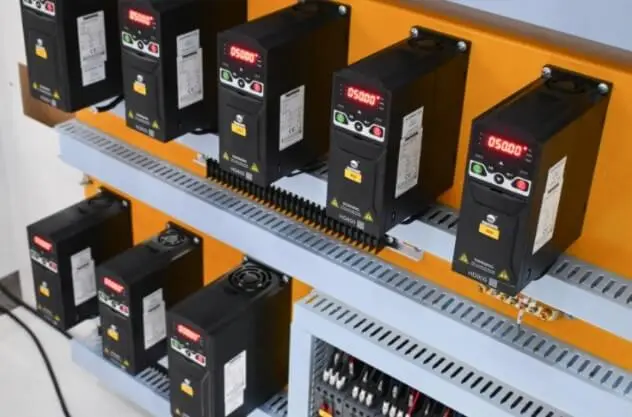

The core of VFD load detection lies in the real-time monitoring of motor operating status. By collecting electrical parameters such as current, voltage, and power, and combining them with speed feedback signals, the actual load condition of the motor is calculated. Modern VFDs typically employ vector control technology, which can precisely decouple the motor's magnetizing current and torque current, thereby achieving high-precision load detection.
In practical applications, the VFD uses built-in current sensors to detect the motor's three-phase current in real-time, while also monitoring the DC bus voltage. These signals, after high-speed AD conversion, are fed into a DSP processor. Specific algorithmic models then calculate the motor's real-time torque and load ratio. Advanced VFDs can further enhance load detection accuracy through motor parameter identification functions, which automatically acquire the motor's electrical characteristics.

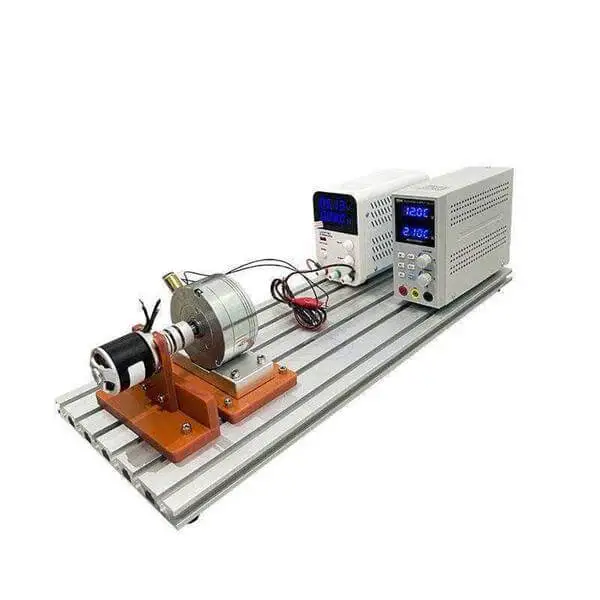

The performance of VFD load detection is primarily measured by the following technical indicators:
（1). Detection Accuracy: High-quality VFDs can typically control load detection error within ±2%, which is crucial for precision control applications.
(2). Response Speed: The detection response time to load changes generally ranges between 10-100ms. VFDs with faster response can adapt more quickly to sudden load variations.
(3). Dynamic Range: An excellent load detection system should cover the full range from no-load to 150% overload.
(4). Anti-Interference Capability: The ability to maintain stable detection performance despite grid fluctuations or sudden load changes.
(5). Temperature Stability: Consistency of detection results across different environmental temperatures is also a key indicator of system reliability.

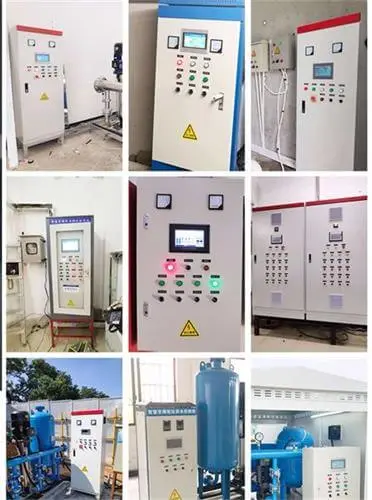

In variable load applications like fans and pumps, VFDs use real-time load detection to precisely adjust motor speed, avoiding the energy waste of "using a large motor for a small load." When the detected load ratio falls below a set threshold, the VFD automatically reduces the operating frequency, achieving on-demand energy supply. Statistics show this load-based energy-saving control can reduce energy consumption by 20%-60%.
The overload protection function of VFDs relies on accurate load detection. If a load exceeding the rated value is detected for a sustained period, the VFD automatically reduces output or shuts down to prevent motor overheating damage. Load detection can also identify abnormal conditions like mechanical jamming, triggering appropriate protective measures.
By long-term recording and analysis of load change trends, the wear state of mechanical equipment can be predicted. For example, a gradual increase in load under identical operating conditions may indicate bearing wear or decreased transmission system efficiency, alerting users to perform timely maintenance.
In production lines, load detection data can help optimize process parameters. For instance, in extruder applications, analyzing the load characteristics of different raw materials allows for automatic adjustment to optimal processing parameters, improving product quality stability.
Numerous sources of electromagnetic interference in industrial settings can cause signal distortion.
Solutions include:
Using shielded cables to connect the motor and VFD.
Adding filter circuits at signal input terminals.
Optimizing the VFD's grounding system.
Employing digital filtering algorithms to eliminate high-frequency noise.
Conventional methods have greater error when motor load is below 10%.
Improvement measures:
Using high-precision current sensors.
Implementing automatic zero-point calibration.
Using adaptive filtering algorithms to enhance small-signal detection capability.
Traditional detection methods may exhibit response delays for rapidly changing loads.
Solutions include:
Increasing sampling rate and processing speed.
Adopting predictive control algorithms.
Optimizing control cycles and filter parameters.
Special handling is required when multiple motors drive a single load.
Installing a mechanical torque sensor as the primary reference.
Adopting a master-slave control structure, where the master VFD handles load distribution.
Implementing power balancing control algorithms.
With the development of Industry 4.0 and smart manufacturing, VFD load detection technology is evolving in the following directions:
(1). Intelligence: Integrating AI algorithms for automatic load pattern recognition and prediction. Using machine learning, VFDs can "memorize" load characteristics under different conditions and make adjustments proactively.
(2). High Integration: New-generation VFDs integrate load detection with modules for vibration analysis, temperature monitoring, etc., providing more comprehensive equipment condition monitoring.
(3). Wireless Transmission: Using industrial wireless communication for remote monitoring and analysis of load data, facilitating centralized management and big data applications.
(4). Digital Twin: Load detection data will be used to build digital twin models of motors, simulating and optimizing actual operating states in a virtual space.
(5). Edge Computing: Performing real-time analysis and processing of load data locally on the VFD, reducing dependence on central control systems and improving response speed.
To ensure reliable operation of the load detection system, pay attention to the following in practical applications:
(1). Parameter Setting: Correctly input motor nameplate parameters. Perform regular motor parameter auto-tuning, especially after motor replacement.
(2). Calibration & Maintenance: Regularly calibrate current sensors and check the reliability of signal connection lines.
(3). Environmental Adaptation: Consider the impact of ambient temperature changes on detection accuracy. Use industrial-grade components in high-temperature environments.
(4). System Matching: Ensure the VFD capacity matches the motor power, avoiding under-powering or over-powering scenarios.
(5). Data Analysis: Establish a historical load database to identify potential issues through trend analysis.
Advances in VFD load detection technology have brought significant efficiency improvements to industrial automation. With the application of new materials, algorithms, and architectures, future load detection will become more precise, intelligent, and reliable, providing stronger technical support for smart manufacturing. When selecting and using VFDs, users should fully consider their load detection performance and configure them appropriately based on specific application needs to maximize effectiveness.
