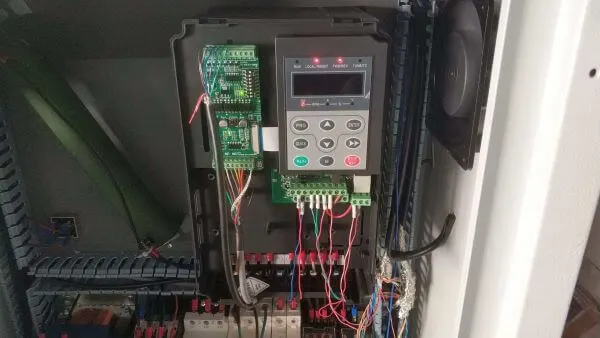

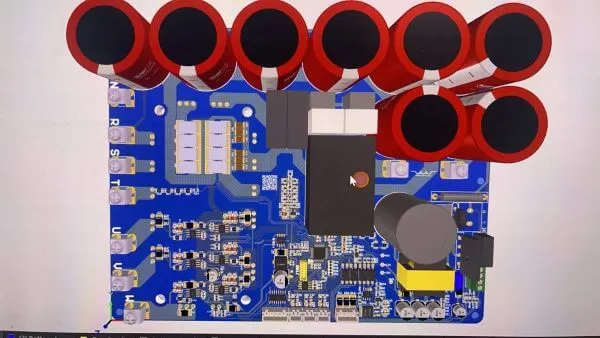

In the realm of modern industrial automation, Variable Frequency Drives (VFDs), as the core equipment for electric motor speed control, are seeing increasingly widespread application. However, the PWM waveform output by VFDs can impose a series of specific effects on motor operation, primarily manifested in the following areas:
VFD operation generates rich high-frequency harmonics, which propagate through both cable conduction and spatial radiation. Measured data indicates that the Total Harmonic Distortion (THD) of the voltage waveform output by a VFD can reach 10%-15%, significantly higher than the 2%-3% typical of direct grid supply. These high-frequency harmonics cause additional copper and iron losses in the motor windings, increasing motor temperature rise by 8-15°C.
The fast rising edge of the PWM waveform (dv/dt typically exceeding 5000V/μs) causes cumulative damage to the motor's insulation system. Under long-term operation, partial discharge phenomena accelerate insulation aging. Especially for standard motors rated at 380V, their insulation lifespan may be reduced by 30%-50%.
The common-mode voltage can induce shaft voltages of 10-30V. When this exceeds the breakdown threshold of the bearing lubrication film (approximately 15-20V), discharge currents occur. This high-frequency discharge leads to characteristic "fluting" or "washboard" pattern erosion on the bearings. Field cases show that the bearing life in VFD-driven motors without protective measures can be reduced to one-third of the original design.
(1) Install dv/dt Filters: These limit the voltage rise rate to below 500V/μs, effectively reducing high-frequency harmonic components. Field tests show motor winding temperature rise can be reduced by 5-8°C after filter installation.
(2) Use Sine Wave Filters: These convert the PWM waveform into an approximate sine wave, controlling THD within 5%. They are particularly suitable for applications with long cable runs.
(1) Select Inverter-Duty Motors: These motors feature a triple insulation system (phase-to-phase, turn-to-turn, and ground) with insulation materials typically rated Class F (155°C) or higher.
(2) Perform Regular Insulation Testing: It is recommended to test insulation conditions quarterly using a polarization index (PI) tester. A PI value falling below 1.5 should trigger concern.
(1) Install Grounding Brushes: Installing conductive grounding brushes on the motor's non-drive end can control shaft voltage below 3V. An application case in a chemical plant showed this measure extended average bearing life to 18,000 hours.
(2) Use Insulated Bearings: Installing ceramic-coated insulated bearings on the drive end completely blocks the current path. Note that the heat dissipation performance of insulated bearings may decrease by approximately 15%.
Use symmetrical shielded cables (shield coverage ≥85%). Ideally, keep cable length under 50 meters. When laying cables in parallel, maintain a distance of over 30cm between power and control cables; they should cross at a 90-degree angle.
Adopt a "single-point grounding" principle with grounding resistance ≤4Ω. For high-frequency applications, use copper tape grounding (cross-sectional area ≥50mm²), and keep the grounding conductor as short as possible (ideally <5m).
(1) Establish Vibration Monitoring Baselines: Following ISO 10816-3 standards, regularly measure the RMS vibration velocity of bearings. A warning should be issued when values exceed 2.8 mm/s.
(2) Infrared Thermography: Perform thermal imaging analysis quarterly on key areas like motor terminal boxes and bearing housings. Investigate if temperature differences exceed 15°C.
Recommendations:
Select specialized high-speed VFDs (with adjustable carrier frequencies up to 15kHz or higher).
Employ a matched water-cooling system.
Use magnetic bearings to eliminate mechanical contact.
Must use Ex d flameproof VFDs and ensure:
Motor surface temperature does not exceed the limit defined by the explosion-proof rating.
Cable entry devices comply with GB3836 standards.
Regularly inspect the gap of flameproof joints (should be maintained at 0.1-0.3mm).
Taking a 55kW PMSM motor as an example, the initial investment for a comprehensive protection package (inverter-duty motor + filter + insulated bearing) increases by approximately 25%. However, considering the overall benefits:
Energy consumption reduction of 8-12%.
Maintenance cost reduction of 40%.
Equipment lifespan extension of 50%. The payback period is typically 18-24 months.
In practical engineering applications, the appropriate combination of solutions should be selected based on specific operating conditions. For critical continuously running equipment, a complete protection package is recommended. For intermittently running auxiliary equipment, protection measures can be simplified appropriately. Regular maintenance checks and timely condition assessment are key to ensuring long-term stable system operation. With the application of wide-bandgap semiconductor devices like SiC, the output waveform quality of next-generation VFDs will significantly improve, potentially leading to a fundamental solution for motor compatibility issues.
