In the rapidly evolving landscape of automotive electronics and smart devices, the demand for compact, intelligent, and highly reliable motor control solutions is at an all-time high. Enter the MPQ6634-AEC1 from Monolithic Power Systems (MPS) – a fully integrated, three-phase, sensorless brushless DC (BLDC) motor driver that is revolutionizing design simplicity and performance in applications ranging from vehicle cooling fans to advanced seating systems .
Winning the "Top Ten Main Control Chip Award" at the 2024 Motor Control Technology Market Performance Awards, the MPQ6634 has already made a significant impact in the industry by delivering robust power in an exceptionally small form factor . Its core philosophy is "zero-code" operation, packing complex three-phase driving, a Field-Oriented Control (FOC) algorithm, and comprehensive protection features into a single chip to dramatically accelerate development cycles .
The MPQ6634 is engineered for versatility and resilience in demanding environments. Below are its key technical parameters:
|
Feature Category |
Specification |
|
Input Voltage (VIN) |
4.5V to 35V |
|
Peak Phase Current |
Up to 2A |
|
Control Method |
Sensorless Field-Oriented Control (FOC) |
|
Speed Control Input |
0-3.3V DC or 50Hz to 20kHz PWM signal |
|
Control Modes |
Configurable Open-Loop & Closed-Loop Speed Control |
|
Key Protections |
Over-Current (OCP), Over/Under-Voltage (OVP/UVLO), Stall, Phase Loss, Over-Temperature |
|
Communication |
I²C Interface for configuration and monitoring |
|
Switching Frequency |
24kHz |
|
Package |

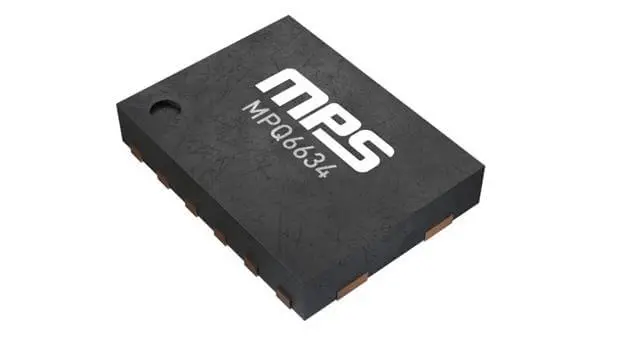

AEC-Q100 Grade 1 Certified, TQFN-12 (3mm x 4mm) with Wettable Flanks |
The standout feature of the MPQ6634 is its integrated sensorless FOC algorithm. Traditional FOC implementations require significant software development and microcontroller resources to precisely control motor torque and efficiency. The MPQ6634 abstracts this complexity entirely.
> Algorithm-on-Chip: The advanced FOC algorithm is embedded within the driver IC itself. It estimates the rotor position in real-time by monitoring motor currents, eliminating the need for physical Hall sensors . This not only reduces system cost and complexity but also enhances reliability by removing a potential point of mechanical failure.
> GUI-Based Configuration: Engineers can fine-tune motor performance—such as start-up torque, acceleration profiles, speed curves, and protection thresholds—through an intuitive Graphical User Interface (GUI) by simply writing to the chip's internal registers via I²C . This "zero-code" approach allows for rapid prototyping and platform-based design across different motor types.
(1). High Integration for Minimal Footprint: The chip integrates six low-Rds(on) power MOSFETs (with a typical total resistance of 450mΩ) and an LDO regulator . This all-in-one design drastically reduces the external component count, enabling incredibly compact PCB layouts ideal for space-constrained applications like thin automotive fans or pump modules.
(2). Flexible and Precise Speed Management: The MPQ6634 offers exceptional control flexibility. Speed can be commanded either by a PWM signal's duty cycle or a DC voltage level . It supports configurable multi-point speed curve programming, allowing the output duty cycle (or RPM in closed-loop mode) to be mapped non-linearly to the input signal for optimized performance . The dedicated DIR pin allows for instant dynamic control of motor rotation direction .
(3). Comprehensive Robustness for Automotive-Grade Reliability: Designed to meet the stringent AEC-Q100 Grade 1 standard, the MPQ6634 is built to withstand the harsh electrical and thermal environment of an automobile . Its suite of hardware protection mechanisms acts as a vigilant guardian:
> Proactive Safeguards: Includes configurable short-circuit (SCP), over-current (OCP), and multiple over-voltage (OVP) threshold protections to prevent damage during electrical faults .
> System Condition Monitoring: Features stall detection, phase-loss protection (PLOS), and undervoltage lockout (UVLO) to ensure safe operation under abnormal conditions .
> Thermal Security: A built-in thermal shutdown (TSD) circuit disables the outputs if the junction temperature exceeds 175°C, with automatic recovery upon cooling .
The combination of small size, high efficiency from FOC control, and automotive-grade ruggedness makes the MPQ6634 an ideal choice for several key areas:
> Automotive Thermal Management: It is a premier solution for engine cooling fans, cabin HVAC blowers, and seat ventilation fans, where its low noise, high efficiency, and reliability are critical . Its ability to operate from a 12V or 24V vehicle bus directly simplifies design.
> Small Appliances & Pumps: The driver is equally suitable for high-performance brushless motors used in quiet air purifiers, efficient water circulation pumps, and other low-power industrial or consumer devices requiring smooth, reliable operation .
> Applications Requiring Smooth Operation: The 180° sinusoidal drive provided by the FOC algorithm minimizes torque ripple and audible noise, making it superior to traditional trapezoidal control for applications where vibration and acoustic performance are important .
The MPQ6634-AEC1 represents a significant leap forward in brushless motor drive technology. By mastering the complexity of sensorless FOC control and integrating it with power stages and robust protection into a minuscule 3mm x 4mm package, MPS has delivered a solution that embodies "simplicity is power" . It empowers engineers to bring sophisticated, quiet, and reliable motor-driven products to market faster than ever before, truly answering the call for the next generation of intelligent motion control.
