As an actuator that converts electrical pulse signals into angular or linear displacement, the core control parameters of a stepper motor—the relationship between pulses and the step angle—directly determine system precision and dynamic performance. To gain a deep understanding of this mechanism, analysis must be conducted from the perspectives of stepper motor operating principles, pulse drive characteristics, the essence of the step angle, and key considerations in practical applications.

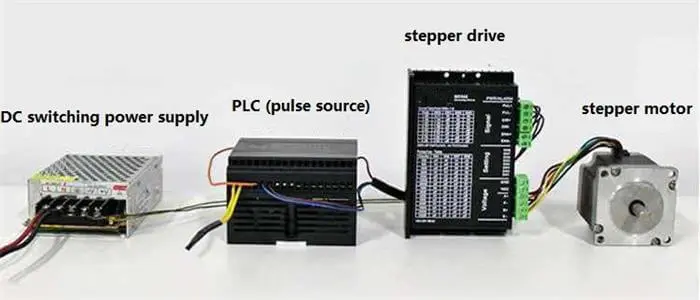

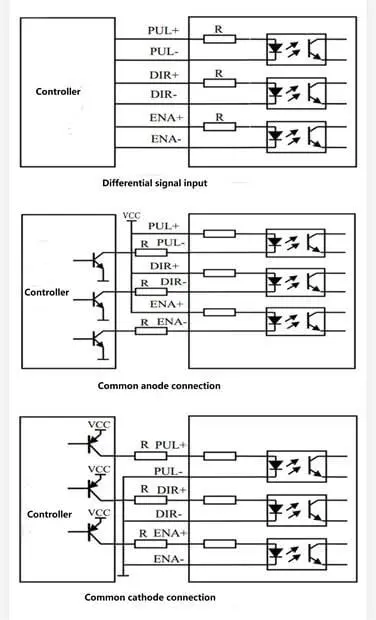

The operation of a stepper motor is essentially a digitally controlled process of magnetic field orientation. When the controller sends an electrical pulse signal, the drive circuit converts this signal into a current switch in the stator windings, causing the rotor magnetic poles to rotate a fixed angle under the influence of electromagnetic torque. This "step-by-step" characteristic enables open-loop control without the need for position sensors. For example, a typical operating sequence for a two-phase hybrid stepper motor is an eight-beat cycle: A→AB→B→BC→C→CD→D→DA, where each pulse corresponds to a change in the energization state of the windings.
There is a strict linear relationship between pulse frequency and motor speed, calculated by the formula: Speed (rpm) = (Pulse Frequency × 60) / (Steps per Revolution). If a motor has a step angle of 1.8°, it requires 200 pulses per revolution (360°/1.8°). With a pulse frequency of 1000 Hz, the speed would be 300 rpm. This proportional relationship gives stepper motors unique advantages in applications requiring precise speed control, such as CNC machine tools and 3D printers.

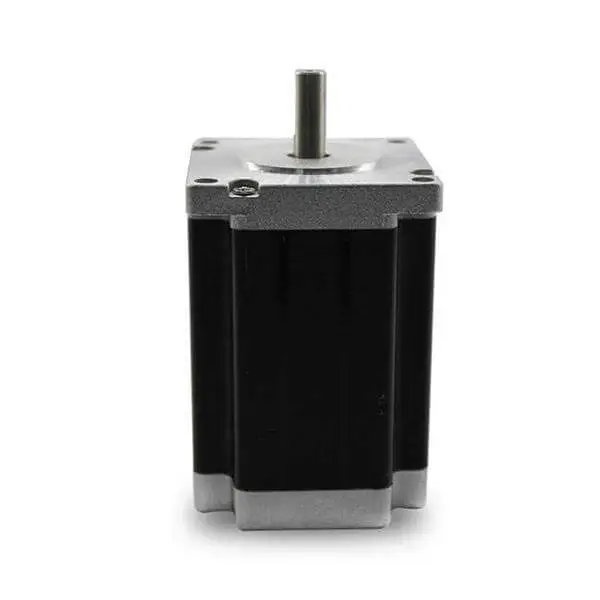

The step angle refers to the rotor rotation angle corresponding to each pulse signal, and its value is determined by the motor's inherent structure. For traditional permanent magnet stepper motors, step angles are typically 7.5° or 15°; hybrid motors commonly have 1.8° or 0.9°; and microstepping drive technology can achieve even smaller equivalent step angles. Physically, the step angle depends on two key factors: the number of rotor teeth and the number of phases. The basic step angle θ = 360° / (N × m), where N is the number of rotor teeth and m is the number of phases. For example, a two-phase motor with a 50-tooth rotor has a theoretical step angle of 3.6°.
Modern precision control often employs subdivision drive technology to enhance resolution. When a full step is subdivided into 16 microsteps, a motor with a 1.8° step angle can achieve a resolution of 0.1125°. However, it is important to note that subdivision does not change the motor's inherent step angle; it is an interpolation effect achieved through current vector control. Data indicates that this technology can effectively suppress low-frequency vibration, resulting in smoother motion, but excessively high subdivision may lead to increased torque ripple.
During actual operation, the correspondence between pulses and step angle is influenced by various dynamic factors:
1. Step Loss: When the pulse frequency exceeds the motor's start-stop frequency, rotor inertia causes the stepping action to lag. Experimental data shows that for a motor with a 57mm frame under a 0.5Nm load, the no-load start frequency is about 1500 Hz, while under load it can drop sharply to below 300 Hz.
2. Resonance Effects: Mechanical resonance prone to occur in the 100-300 Hz frequency range, manifesting as noticeable vibration and noise. Techniques like half-step driving or damping algorithms can effectively suppress this phenomenon.
3. Torque Decay: As pulse frequency increases, motor output torque decreases exponentially. A certain motor model might have a holding torque of 2 N·m at 1000 pps, which could decay to 0.3 N·m at 10,000 pps.
These characteristics necessitate strict pulse-speed-torque matching calculations by engineers during design. For instance, in automated production lines, conveyor belt drives require calculating the necessary pulse frequency range based on parameters like the mass of moving objects and friction coefficient.
1. Trade-off between Accuracy and Speed: High resolution (small step angle) implies longer single-step time. A medical equipment case study showed that using a 0.9° motor improved positioning accuracy by 40% compared to a 1.8° motor, but increased the cycle time by 25%.
2. Drive Mode Selection:
● Constant Voltage Drive: Simple and economical, but poor high-speed performance.
● Constant Current Drive: Maintains stable torque, suitable for dynamic loads.
● Microstepping Drive: Suitable for precise positioning, but requires complex control algorithms.
3. Pulse Control Optimization:
● Acceleration/Deceleration Curve Design: S-curves reduce positioning overshoot by 35% compared to trapezoidal curves.
● Pulse Group Processing: Bundling continuous pulses for transmission reduces communication latency impact.
Measured data from an industrial robot joint drive shows that using 32-microstep drive combined with an adaptive pulse algorithm achieves a repeatable positioning accuracy of ±0.01°, an 8-fold improvement over traditional methods.
1. Closed-Loop Stepper Systems: Integrate encoders to provide real-time position feedback, solving the step loss problem of traditional open-loop systems. Market data indicates the penetration rate of closed-loop steppers in high-end equipment is projected to reach 40% by 2025.
2. Intelligent Drive Technology:
● FPGA-based pulse generators with time resolution reaching the 10ns level.
● AI-powered parameter tuning systems capable of automatically optimizing pulse parameters.
3. New Material Applications: Combinations of neodymium iron boron permanent magnets and nanocrystalline stator cores have increased the holding torque of new-generation motors by over 30%.
These innovations are reshaping the performance boundaries of stepper motors. For example, after adopting a closed-loop stepper system, a semiconductor equipment manufacturer reduced wafer transfer positioning time to 120ms while lowering energy consumption by 22%.
The pulse-step angle control system of a stepper motor acts like a precise "digital-mechanical" translator, whose performance directly impacts the entire electromechanical system. As Industry 4.0 demands ever-higher performance in motion control, understanding the deep-seated relationship between pulses and step angle, mastering methods to compensate for dynamic characteristics, and integrating emerging technologies will become core competencies for engineers designing high-precision motion systems. In the future, stepper motor technology will continue evolving towards greater intelligence, efficiency, and precision, providing more powerful foundational actuation support for smart manufacturing.
