As data centers evolve towards higher densities and greater computational power, traditional air cooling struggles to meet escalating thermal management demands. Liquid cooling, particularly direct-to-chip or immersion cooling, has emerged as a superior solution. At the heart of these systems lies the liquid cooling pump, a critical component responsible for circulating coolant and enabling efficient heat transfer. This article explores the pivotal role of liquid cooling pumps and provides a framework for their selection.

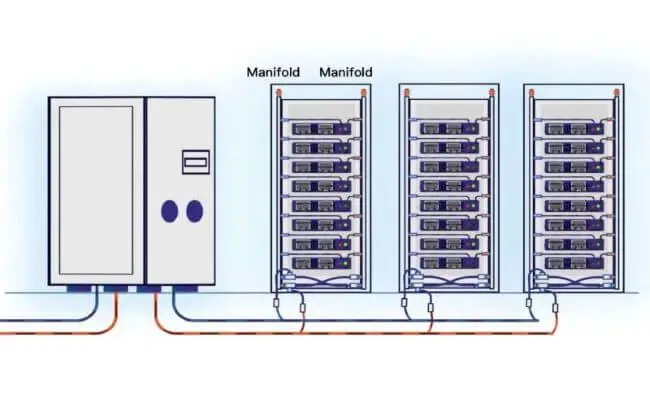

Liquid cooling pumps are the circulatory system of any liquid-cooled data center infrastructure. Their primary function is to provide the necessary flow and pressure to move coolant through a closed loop, transferring waste heat from IT components (CPUs, GPUs, memory, etc.) to a heat rejection unit.
Key roles include:
Enabling High-Efficiency Heat Exchange: Coolant's higher heat capacity compared to air allows it to absorb more heat per unit volume. The pump ensures this coolant is continuously delivered to cold plates or immersion tanks, maintaining optimal contact with heat sources. This enables the cooling of high-density racks exceeding 30-50 kW, which is challenging for air cooling.
Improving Energy Efficiency (PUE): By facilitating highly targeted and efficient heat removal, liquid cooling reduces the massive energy consumption of computer room air handlers (CRAHs) and fans. This directly contributes to a lower Power Usage Effectiveness (PUE), a key metric for data center sustainability.
Reducing Acoustic Noise: Eliminating or minimizing high-speed server fans significantly lowers the acoustic noise within the data hall, improving the working environment.
Enabling Heat Reuse: A reliable, controlled flow from the pump allows for the stable capture of high-grade waste heat (often in the form of warm water), which can be repurposed for district heating or other applications.
Ensuring System Reliability: Consistent pump operation is vital. Any failure can lead to rapid temperature spikes and hardware throttling or damage. Modern systems often employ pump redundancy (N+1) for this reason.
Selecting the right pump is crucial for system efficiency, reliability, and total cost of ownership (TCO). Here are the primary factors to consider:
Flow Rate (Q): Measured in liters per minute (LPM) or gallons per minute (GPM). This must satisfy the total thermal load. The required flow is calculated based on the heat load (kW), the coolant's specific heat capacity, and the allowable temperature rise (ΔT) across the IT equipment. Formula (simplified): Q ≈ (Heat Load) / (ρ * Cp * ΔT).
Head Pressure (H): Measured in meters of liquid column or feet of head. It must overcome the total system pressure drop, including resistance from cold plates, piping, fittings, valves, and the external heat exchanger. A detailed hydraulic analysis of the loop is necessary.

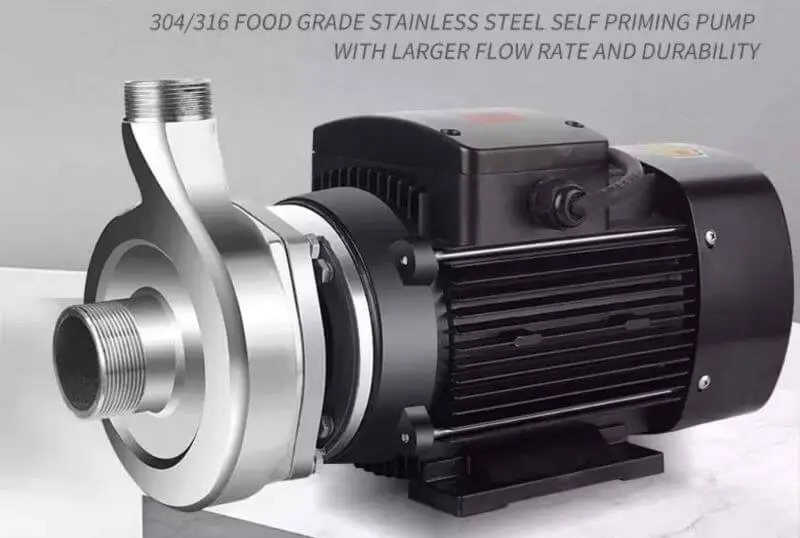

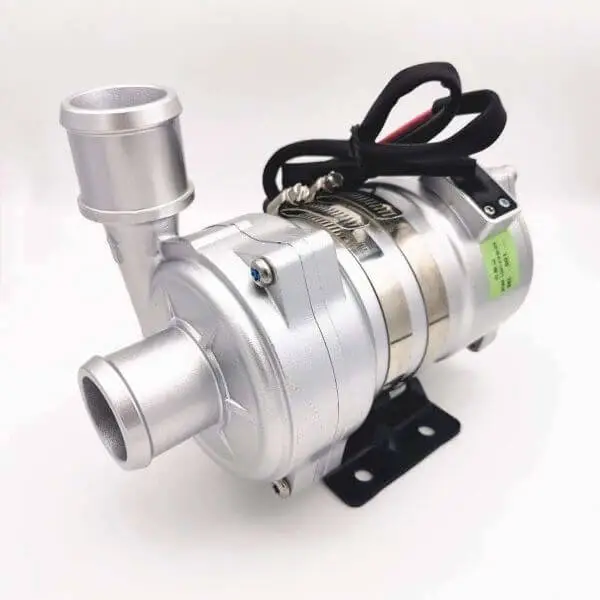

Centrifugal Pumps: The most common choice. They offer smooth, continuous flow, are good for medium-to-high flow rates against moderate system head, and are generally compact and cost-effective.
Canned Motor Pumps: a type of sealless centrifugal pump where the pump and the drive motor are integrated into a single hermetically sealed unit. It allow the pump to handle hazardous, toxic, or high-purity fluids without external leakage.

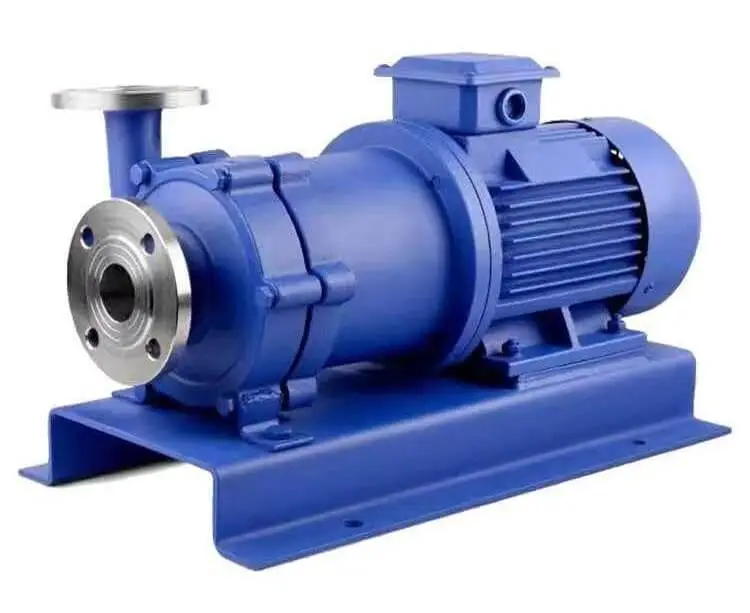

Magnetic drive pump: a sealless pump that uses a magnetic coupling to transmit torque from the motor to the impeller without a direct mechanical shaft connection. This type pumps offer zero leakage and are chosen for applications where seal failure is unacceptable.
The pump's wetted materials (housing, impeller, seals) must be fully compatible with the chosen coolant (deionized water, dielectric fluid, glycol-water mixtures) to prevent corrosion, degradation, or particle generation.
Seek pumps with a high efficiency curve at your system's intended operating point (Best Efficiency Point - BEP).
Variable Speed Drives (VSD): Pumps with integrated VSD or compatibility with external controllers are highly recommended. They allow the flow rate to be dynamically adjusted based on IT load, leading to significant energy savings compared to fixed-speed pumps with bypass valves.
Mean Time Between Failures (MTBF): A critical metric. Look for pumps designed for continuous 24/7 operation with a high MTBF.
Bearing and Seal Design: Mag-lev (magnetic levitation) or canned rotor designs eliminate mechanical seals and bearings, reducing wear points and potential leak paths, thereby increasing reliability.
Serviceability: Consider ease of maintenance or replacement in the data center environment.
The pump should offer standard interfaces (e.g., Modbus, BACnet, IPMI) for integration into the data center's Building Management System(BMS) or Data Center Infrastructure Management (DCIM) software.
Built-in sensors for monitoring health (vibration, temperature), flow, and pressure are essential for predictive maintenance.
The pump must fit within the designated space, whether integrated into a server, a rack-level distribution unit (CDU), or a room-scale system.
Noise output should be evaluated, especially for deployments closer to personnel.
1. Define System Requirements: Determine total heat load, target coolant ΔT, and coolant type.
2. Model the Hydraulic Loop: Calculate the total system pressure drop at the required flow rate.
3. Establish Pump Duty Point: Define the required (Q, H) operating point.
4. Shortlist Pumps: Find models whose performance curves comfortably encompass your duty point, ideally near their BEP.
5. Evaluate for Compatibility & Control: Ensure material compatibility and select a model with VSD capability.
6. Assess Reliability Features: Prioritize high MTBF and robust designs like mag-lev bearings.
7. Plan for Integration & Redundancy: Ensure monitoring capability and design the system with redundant pumps (N+1) for critical applications.
Liquid cooling pumps are indispensable enablers of next-generation, high-density, and sustainable data center cooling. Their selection moves beyond mere flow and pressure specifications. A holistic approach that balances performance, energy efficiency, material compatibility, intelligent control, and foremost, reliability, is essential. Investing in the correct pump technology and selection process ensures the thermal stability, efficiency, and operational resilience of the entire data center infrastructure.
