Construction machinery, such as excavators, loaders, cranes, and tunnel boring machines, forms the backbone of modern infrastructure development. These machines operate under extreme and harsh conditions: heavy loads, impact shocks, dust, mud, and water. The core transmission component that reliably and efficiently transmits power from the engine or hydraulic motor to the tracks, wheels, buckets, and booms of these steel giants is the gear transmission system.
This article provides a detailed overview of the critical role, unique design challenges, mainstream application forms, and future trends of gear transmission in construction machinery.
Under the demanding requirements of construction machinery, gear transmission demonstrates its irreplaceable advantages:
● High Power Density: Capable of transmitting enormous torque and power within a compact space, perfectly meeting the design requirements for structural compactness in construction machinery.
● High Transmission Efficiency: Single-stage gear transmission efficiency can exceed 98%, which is crucial for energy-intensive construction machinery, effectively saving fuel or electricity.
● Constant Transmission Ratio, Reliable Operation: Ensures a strict and stable ratio between output and input speeds, enabling precise and controllable equipment movements.
● Long Service Life, High Reliability: With proper design, manufacturing, and maintenance, gear systems can withstand millions of load cycles, with a lifespan reaching thousands or even tens of thousands of hours.
● Strong Adaptability: Through the combination of different gear types (spur, bevel, planetary, etc.), various functions such as speed reduction, increase, direction change, and power take-off can be easily achieved.
The design of gears for construction machinery is far from standard textbook calculations; it must confront a series of severe challenges:
● Heavy Loads and Strong Impacts: Moments like an excavator bucket suddenly hitting rock or a loader penetrating a material pile generate impact loads several times the rated torque. Design must be based on these peak loads.
● Harsh Working Environments: Dust accelerates wear, mud and water can cause corrosion and lubrication failure, and significant temperature variations affect material properties and lubricant viscosity.
● Limited Space and Weight Constraints: Reducing volume and weight as much as possible while ensuring strength is key to improving equipment mobility and load capacity.
● High Reliability and Long Life Requirements: Construction machinery are typically production tools, and downtime means significant economic loss. Therefore, their gear transmission systems must possess extremely high reliability and a predictable service life.
To address the aforementioned challenges, a unique design philosophy has emerged for construction machinery gears.
1. Material and Heat Treatment: A Balance of Strength and Toughness
● Material: High-grade alloy carburizing steels, such as 20CrMnTi, 20CrNi2MoA, are commonly used. After carburizing, these steels achieve an ideal state of "hard surface, tough core" – a hard surface to resist wear and pitting, and a tough core to absorb impact energy and prevent fracture.
● Process: Carburizing and quenching is the standard process. This must be followed by gear grinding to correct heat treatment deformation and achieve extremely high tooth profile accuracy (typically reaching GB Grade 6 or higher), which is key to ensuring even load distribution and reducing noise.
2. Gear Modification: The Wisdom of Compromise
● Problem: Under massive loads, gear shafts and housings undergo minor elastic deformation, and gears experience thermal deformation during meshing due to friction. These deformations cause theoretically "perfect" tooth profiles to experience edge contact in real-world meshing, leading to stress concentration and premature pitting or tooth breakage.
● Solution: Profile modification and lead crowning. This involves pre-machining micro-relief on the tooth tip and ends, creating a "barrel shape," allowing the load to transition smoothly across the center of the tooth face and avoiding edge contact. This is a core technology in modern heavy-duty gear design.
3. Transmission Form Selection: The Realm of Planetary Gear Sets
To achieve high reduction ratios and load capacity within limited space, planetary gear transmissions have become the absolute mainstay in construction machinery (especially for travel and swing systems).
Advantages:
● Compact size, light weight: Power is split through multiple planet gears, achieving "big results from small components."
● High load capacity: Multiple planet gears share the load simultaneously.
● High transmission efficiency: Symmetrical structure with radial forces canceling each other, minimizing bearing losses.
● Typical Structure: A common combination is "two-stage planetary gear set + one-stage spur/bevel gear." The first two planetary stages handle the main speed reduction, while the final fixed-axis stage is for final reduction and changing the power transmission direction.
4. Comprehensive Verification and Simulation: "Tempering" in the Virtual World
Upon design completion, rigorous verification through theoretical calculations and modern simulation technology is essential:
● Strength Verification: Following international standards like ISO 6336 or AGMA 2001, verify tooth flank contact fatigue strength and tooth root bending fatigue strength, with ample safety factors.
● Bearing Life Calculation: Calculate the bearing's L10 rating life per ISO 281, adjusted for lubrication conditions and contamination levels.
● Finite Element Analysis (FEA): Perform static and dynamic analysis on gears, shafts, planet carriers, and housings to optimize structure and eliminate stress concentrations.
●Lubrication and Thermal Analysis: Design a reasonable lubrication circuit and analyze the system's thermal balance to ensure oil temperature remains within safe limits.

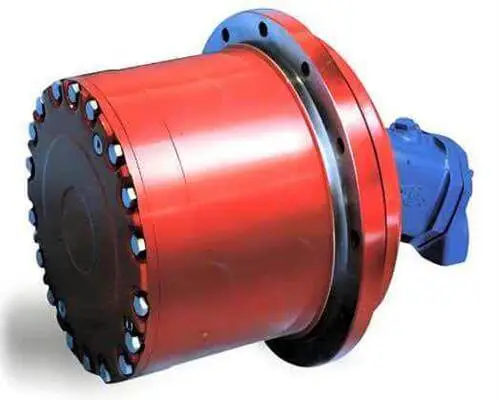

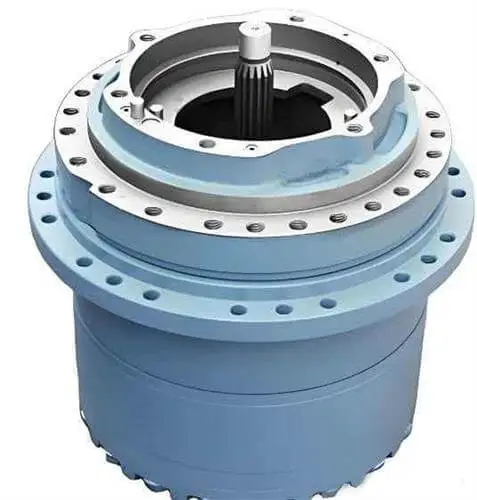

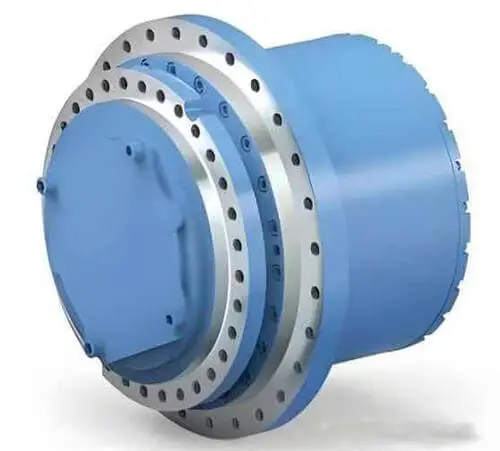

Travel Reduction Gearbox
Location: Inside the track drive sprocket.
Function: Converts the high speed, low torque from the hydraulic motor into the low speed, high torque needed to drive the sprocket, moving machines weighing tens of tons. It bears the brunt of impact loads.

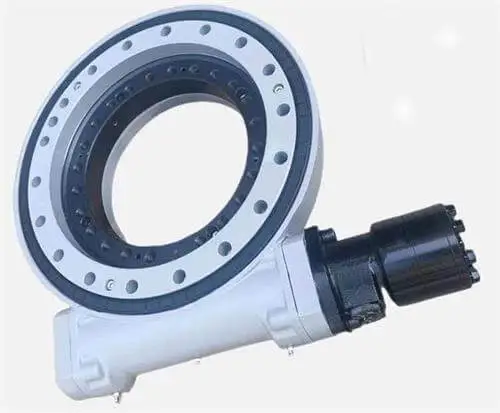

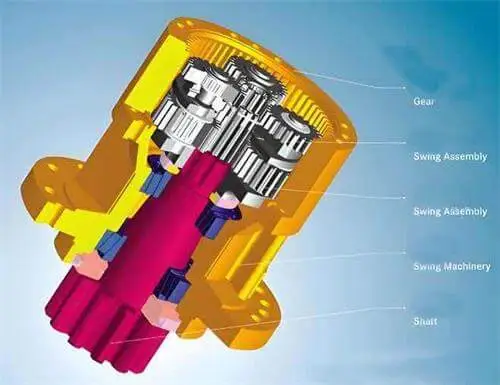

Slew Drive / Swing Reduction Gearbox
Location: Mounted between the upper structure (house) and undercarriage of excavators, etc.
Function: Drives the slewing bearing to enable 360° continuous rotation of the upper structure. It undergoes frequent start-stops and withstands massive inertial loads and overturning moments.
Transmission Gearbox
Location: Primarily used in wheeled construction machinery like loaders and truck cranes.
Function: By engaging different gear pairs, it changes the speed and torque to the wheels, adapting to varying demands for travel and operation.
Transfer Case / Power Take-Off (PTO)
Function: Distributes engine power to the front and rear axles for all-wheel drive. Sometimes also responsible for powering work attachments like hydraulic pumps.
Final Drives in Working Attachments
Function: In equipment like concrete mixers or tunnel boring machines, used for the final drive of the mixing drum or cutterhead.
Gear transmission is the power lifeline and motion joint of construction machinery, the engineering cornerstone of its formidable working capability. Its design is an art of seeking the optimal balance between strength, lifespan, efficiency, and cost under extreme operating conditions. From the microstructure of materials to the macro performance of the entire machine, every detail embodies profound engineering wisdom. As technology advances, gear transmission will continue to serve as the core driving force, propelling construction machinery toward greater efficiency, reliability, and intelligence.
