As common fluid transfer equipment in industrial and civilian applications, three-phase brushless DC pumps and AC three-phase pumps have core differences in their working principles, energy efficiency performance, control methods, and applicable scenarios. The following analysis is conducted from three dimensions: technical details, performance comparison, and practical applications.
1. Drive Mechanism

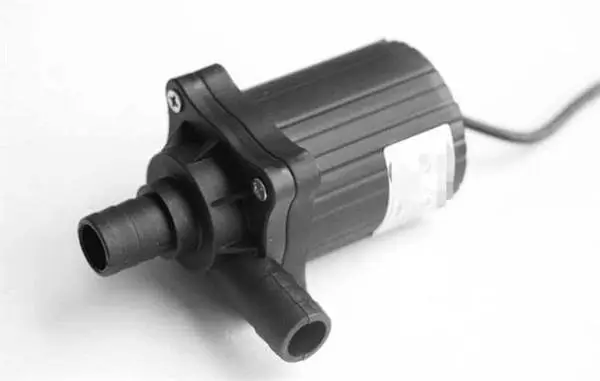

● Three-Phase Brushless DC Pump (BLDC Pump): Employs electronic commutation technology. Built-in Hall sensors detect the rotor position, and the controller precisely switches the current direction in the stator windings, enabling continuous rotation without mechanical contacts. Typical operating voltages are DC 24V/48V; for instance, some agricultural irrigation pumps use 48V DC systems.

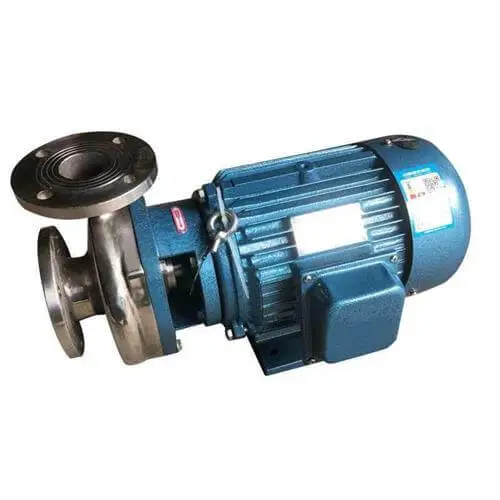

● AC Three-Phase Pump: Relies on the phase difference (120°) of alternating current to generate a rotating magnetic field, which directly drives a squirrel-cage induction motor. Voltage is typically AC 380V/220V. The commutation process is naturally completed by the power supply frequency, requiring no additional control circuitry.
2. Motor Structure
● Brushless DC Motor: Consists of a permanent magnet rotor and a multi-pole stator winding. The rotor has low inertia; for example, the rotor of one brand's pump weighs only one-third of an AC motor with equivalent power.
● AC Induction Motor: Uses a copper-bar squirrel-cage rotor. The structure is simple, but it suffers from slip (approximately 2-5% speed loss), and the starting current can reach 5-7 times the rated value.
1. Efficiency and Power Factor
● Brushless DC Pump: Efficiency generally reaches 80-92%, with some IE5-class products exceeding 95%. Power factor is close to 1. Test data shows that a certain 200W model provides 18% higher flow rate than an AC pump at a head of 15 meters.
● AC Three-Phase Pump: Efficiency typically ranges from 70-85%, with a power factor of 0.75-0.9. Capacitor compensation cabinets are often needed to enhance efficiency.
2. Speed Control Characteristics
● Brushless DC Pump: Supports PWM stepless speed control (0-100% range) with speed fluctuation less than ±1%, making it suitable for precision irrigation systems.
● AC Three-Phase Pump: Relies on frequency inverters for speed control, which is more costly. Torque drops significantly at low speeds; for example, a certain 7.5kW AC pump experiences a 40% efficiency reduction at 30% speed.
3. Lifespan and Maintenance
● Brushless DC Motor: Bearing life can reach 50,000 hours. The absence of a carbon brush structure avoids sparking and wear.
● AC Pump: Standard bearing life is about 20,000 hours. Regular inspection of winding insulation is required (insulation resistance should be measured every 5,000 hours).
1. New Energy Field
Brushless DC pumps have significant advantages in photovoltaic systems. One off-grid project showed that pairing with an MPPT controller could increase overall system efficiency by 22%. AC pumps require an additional inversion stage, causing about 15% energy loss.
2. Industrial Scenarios
AC pumps still dominate in high-power applications (>5.5 kW). For instance, a 55kW circulating water pump in a chemical plant uses a soft starter + VFD solution. Its annual power consumption is 7% lower than a DC solution, but the initial investment is 30% higher.
3. Adaptability to Special Environments
Brushless DC pumps excel in explosion-proof applications. For example, a certain mining flame-proof pump has obtained ATEX certification and operates in temperatures from -40°C to +85°C. AC pumps in humid environments require IP68 protection (increasing cost by 25%).
1. Integrated Intelligent Control
New-generation brushless pumps integrate IoT modules. A certain smart agricultural pump supports flow adjustment and energy consumption monitoring via a mobile app, with a fault self-diagnosis accuracy rate of 98%. Intelligent retrofitting of AC pumps requires external PLCs, increasing wiring complexity.
2. Material Innovation
Graphene winding technology can increase the power density of brushless motors by 40%. For AC pumps, nanocrystalline iron cores can reduce iron losses by 15% (data from a laboratory).
For scenarios under 3000W, the brushless DC solution is prioritized, as its energy-saving benefits can recover the price difference within 2 years. AC three-phase pumps are more suitable for high-power, continuous operation conditions. In the future, with the widespread adoption of wide-bandgap semiconductor (SiC/GaN) controllers, brushless technology is expected to make breakthroughs in the market above 10kW. Users need to make comprehensive decisions based on actual load characteristics, budget, and maintenance capabilities.
